Patent No. US.11,994,525 | Inventor: Dr. Atsushi Shimada

Cryo-Electron Microscopy Grid Preparation Techniques Enabling 3D Reconstruction by Single-Particle Analysis of Challenging Membrane Protein Samples

We provide technology license for cryo-EM grid preparation technology to enable the data collection of membrane proteins retained within the lipid bilayers directly formed in the pores of carbon support films on electron microscopy grids.

Pre-registration

What This Technology Can Do

We address the challenges of conventional cryo-electron microscopy single-particle analysis for membrane proteins through our proprietary technology.

BEFORE - Challenges with Conventional Methods

  • Methods using detergents cause membrane proteins to deviate from their physiological environment within the lipid bilayer.
  • Methods using liposomes suffer from reduced image quality due to ice thickness.
  • Methods using nanodiscs make it difficult to analyze large membrane protein complexes.
  • High-concentration samples must be prepared, resulting in high preparation costs.
  • For samples with low yields or unstable membrane protein complexes, the prospects for 3D reconstruction are uncertain.

AFTER - Solution Through This Technology

  • Membrane proteins can be held and data collected in a state closer to the physiological environment, within a lipid bilayer
  • By forming the lipid bilayer as a flat sheet on the grid, the ice thickness can be adjusted to be thinner
  • Large membrane protein complexes can also be analyzed
  • Data can be efficiently collected by concentrating even low-concentration membrane protein samples
  • Opens the way to 3D reconstruction of low-yield samples and unstable membrane protein complex samples that were previously difficult to analyze

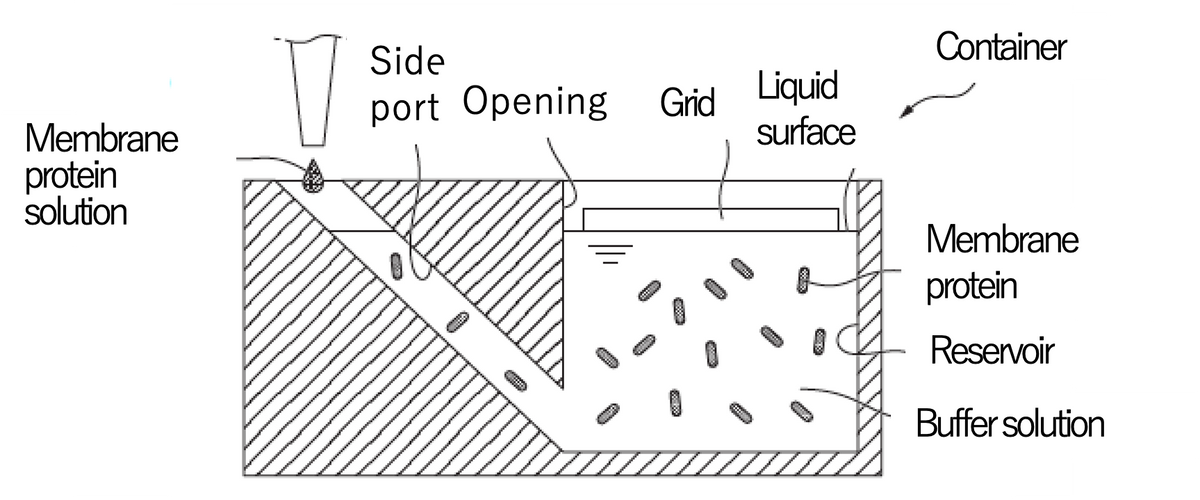

How the Technology Works

Our unique approach of forming lipid bilayers directly within the pores of a carbon-supported film overcomes the limitations of existing technologies and streamlines data collection.

In cryo-LSEM, lipid bilayers are formed directly within the holes of the carbon support film on electron microscopy grids. Because the lipid bilayer is thin, at approximately 5 nm, it reduces ice thickness compared with techniques using liposomes and enables data collection at an appropriate ice thickness.

Because membrane proteins are kept embedded within the lipid bilayer, data can be collected in an environment closer to the native state. This makes it possible to capture the 3D structures of membrane proteins under conditions that more closely resemble their physiological environment.

Furthermore, because our proprietary protocol concentrates membrane proteins on the grid, sufficient particle numbers can be collected for data even when the sample is present only in low quantity or at low concentrations in solution.

**Using affinity purification alone, we successfully achieved 3D reconstruction at 7.8 Å resolution for an unstable membrane protein complex at a concentration as low as 0.03 mg/ml, a sample for which structure determination had not been possible with existing methods.

Ideal for These Types of Samples

Our unique approach of forming lipid bilayers directly within the pores of a carbon support film overcomes the limitations of existing methods and streamlines data collection.

Low-Yield Samples Difficult to Refine

With cryo-LSEM, membrane proteins do not necessarily need to be purified beyond affinity chromatography. The technology enables efficient data collection even from small quantities of membrane protein samples, which are difficult to be concentrated and/or purified to a high degree.

Unstable Membrane Protein Complex

Unstable membrane protein complexes that are difficult to maintain in their assembled state using conventional methods can be stabilized within the lipid bilayer, where their diffusion is restricted to two dimensions.

Samples Available Only in Extremely Low Concentrations

Even when expression levels are extremely low or when high-concentration samples cannot be prepared due to the difficulty of concentrating membrane proteins, a highly efficient and natural concentration process on the grid ensures a sufficient number of particles for analysis.

Frequently Asked Questions

What types of samples are suitable?

This technology targets membrane proteins. It is particularly suited to samples with low yields that can only be purified to the affinity-purification stage, samples that are difficult to concentrate, samples that are difficult to prepare at high purity, and unstable complexes formed between membrane proteins. Owing to the nature of the technology, a wide range of transmembrane proteins, which can possibly be embedded in liposomes, are possible targets, including receptors such as GPCRs and receptor tyrosine kinases, ion channels, transporters, membrane enzymes, and large membrane protein complexes. This technology is not applicable to soluble proteins.

What concentration of membrane protein sample is required?

When using 1 µl of sample at a concentration of 0.1 mg/ml, the calculation shows that membrane proteins will be densely embedded across the entire grid surface, so we recommend conducting experiments around this concentration. For lower concentrations, a larger volume of sample should be used, such as 5 µl. When 5 µl of 0.02 mg/ml sample is used, results equivalent to those obtained with 1 µl of 0.1 mg/ml sample can be expected. Based on our track record, we have successfully achieved 3D reconstruction with affinity-purified samples at approximately 0.03 mg/ml concentration, and we also have experience acquiring data at 0.02 mg/ml concentration. Although data acquisition may be possible at lower concentrations by using an appropriate sample volume, we have not attempted this. Since the optimal concentration for proper data acquisition varies depending on the sample, we recommend exploring concentration conditions within a certain range.

In cryo-LSEM, do membrane proteins not form aggregates within the lipid bilayer?

In LSEM, negatively stained samples tend to aggregate and appear clustered as the grid dries, since particles have a strong tendency to associate during the drying process. However, when grids are properly frozen for cryo-LSEM experiments, we have observed examples where dispersibility actually improved compared to conventional methods, suggesting that aggregate formation may be suppressed rather than promoted. Additionally, the aggregates formed when the grid dries in LSEM are not three-dimensional clusters but are, in principle, two-dimensional lateral associations of membrane proteins.

Are there any issues with the preferred orientation?

For membrane proteins with a molecular weight of around 500 kDa, we have never observed preferred orientation problems to a noticeable degree. This is likely because the lipid bilayer is not perfectly flat but fluctuates, and its thickness is not uniform, so a certain proportion of membrane proteins are inserted into the lipid bilayer at an oblique angle. Furthermore, holding membrane proteins within the lipid bilayer can be expected to keep them away from the air-water interface, so this approach may also solve preferred orientation problems that arise with membrane protein samples prepared by conventional methods. However, large membrane protein complexes with a laterally extended structure may still exhibit preferred orientation problems arising from this method.

How many grid preparation experiments are needed to determine the structure?

The types of conditions considered effective for cryo-LSEM are more limited than in conventional methods, covering only parameters such as membrane protein concentration and various grid-freezing settings. We therefore believe that 1 to 5 grid preparation experiments will yield structural determination results at the resolution achievable by cryo-LSEM for that sample, including whether the approach succeeds. Accordingly, we estimate that the number of licenses you will purchase before then is approximately 1 to 5.

What is the success rate of structure determination by cryo-LSEM?

Determining the structures of membrane proteins remains generally difficult even today. In fact, although more than 6,000 membrane proteins are encoded in the human genome, the number of human and mammalian membrane protein structures determined as of the end of 2024 is only about 250. Furthermore, structure determination by cryo-electron microscopy single-particle analysis generally faces issues such as preferred orientation and aggregation, and some researchers suggest that the probability of successfully determining a structure smoothly is less than 10%. Moreover, membrane proteins often require samples at concentrations of 1-5 mg/ml, which are higher than those needed for soluble proteins, due to problems such as adsorption to carbon support films. In addition, membrane proteins are often difficult to concentrate, so the success rate is likely even lower than for soluble proteins. On the other hand, cryo-LSEM is considered fully capable of collecting data from membrane protein samples at concentrations of around 0.02 mg/ml. Therefore, for low-concentration membrane protein samples that cannot be structurally determined by existing methods, this technique may be almost the only method currently offering the possibility of structure determination. In fact, to date, we have successfully concentrated a membrane protein sample at 0.03 mg/ml, which cannot be structurally determined by conventional methods, more than 90-fold on the grid and achieved a medium-resolution 3D reconstruction. We have also succeeded in obtaining a consistent density map of E. coli AcrB at 7 Å resolution using cryo-LSEM. Because consistent density maps have been obtained in both of the two cases tested so far, cryo-LSEM may simultaneously resolve issues such as aggregation and preferred orientation along with the concentration problem. Although there are no achievements yet in high-resolution structure determination, this is due to the limited number of examples and trials. We believe that as cryo-LSEM is applied to a broader range of membrane proteins, the success rate of high-resolution structure determination will also become clear. We sincerely commit to supporting the success of our technology license purchasers and will continue to aim to improve the success rate.

Is examination of the sample using negative staining necessary?

In conventional methods, samples are typically first examined by negative staining. We also consider preliminary examination of sample properties by negative staining to be effective for cryo-LSEM. However, even when aggregation is observed in negative-stain examination using LSEM, dispersibility may improve under cryo-LSEM. For this reason, some cases proceed without confirming the sample properties of negative-stained specimens by LSEM, and indeed, 3D reconstruction has been successfully achieved even in such cases.

Is the cryo-LSEM protocol simple?

If you have prepared membrane protein solution, lipid solution, buffer, and other materials, the grid preparation experiment itself can typically be completed in 2 days with 3-4 hours of work per day using standard protocols.

What is the success rate of embedding membrane proteins into lipid bilayers in LSEM?

In LSEM experiments using negative staining, we have confirmed the embedding into lipid bilayers for most of the more than 20 different membrane proteins tested so far.

Is it necessary to add tags or labels to membrane protein samples in cryo-LSEM?

No tagging or labeling of membrane protein samples is necessary.

Please tell me the scope of use for the technical license.

Use is limited to the licensee's own research and business purposes. Redistribution, resale, or sublicensing to third parties is prohibited. Sharing or transferring serial numbers to third parties is also prohibited. Please refer to the Terms of Use for details.

Can I cancel or request a refund after purchase?

As a general rule, we are unable to offer refunds or cancellations once a purchase has been completed. Please carefully review the Terms of Service and technical specifications before making your purchase.

Can I get technical advice before making a purchase?

For inquiries before purchase, please use the form. You can consult with us about sample suitability and technical questions.

Can the technology license be used for purposes other than cryo-LSEM?

If you are interested in technology licensing for uses other than cryo-LSEM, such as imaging applications, specific drug discovery purposes, or comprehensive collaborative research, please contact us through the contact form.

Is it possible to request structure determination using cryo-LSEM?

We are now equipped to accept structure determination projects using cryo-LSEM. If you are considering requesting structure determination, please contact us through our inquiry form.

Can PTFE blocks be cleaned and reused?

Although PTFE blocks can physically be cleaned and reused, we do not permit reuse from a quality control standpoint. If data collection could not be completed due to a problem at a stage prior to data collection, please contact us through the contact form, and we will supply only the PTFE block for US$300 so that you can use a new one. If data acquisition was successful, please purchase a new cryo-LSEM license set when conducting your next experiment.
